Refined and upgraded, V2 DSV2

Desktop
Shredder V2

Industrial shredding, on a workbench.

The Desktop Shredder V2 is a benchtop motorised plastic shredder designed and built in the UK by Sustainable Design Studio, for recycling, prototyping, and educational use. Convert waste plastic and failed 3D prints into consistent 8 mm flake at up to 20 kg per hour, ready for injection moulding or extrusion.

Shop the DSV2 View spec sheet

UKCA and CE certified
12 month worldwide warranty
Carbon neutral shipping

Desktop Shredder V2 benchtop motorised plastic shredder, front three-quarter view

20 kg/hr

Output rate

220-240V

Single phase

59 dB

Idle noise

5 / 8 mm

Granule sizes

Plastic Flake

Shredding while you read.

0 g

= 0 bottles

Bottle caps, rigid offcuts, failed prints. The DSV2 turns waste plastic into clean 8 mm flake at 20 kg per hour, ready to feed straight into the Injection Mini V2.

In use

Engineered for everyday workshop use

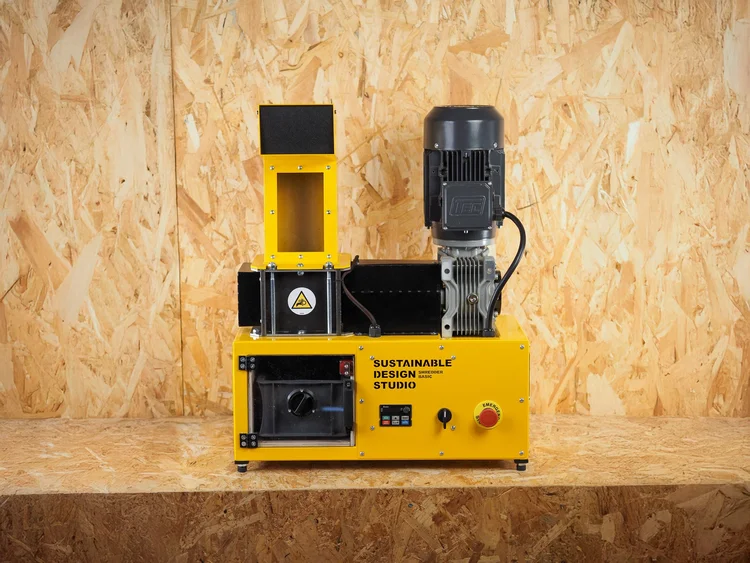

Desktop Shredder V2 cutting blades shredding rigid plastic offcuts

20 kg/hr

Industrial throughput on a benchtop

A 1.5 kW motor through a 1:40 worm gearbox delivers high torque at low speed. Choose the standard 8 mm mesh for ~20 kg/hr output, or fit the optional 5 mm mesh for finer flake.

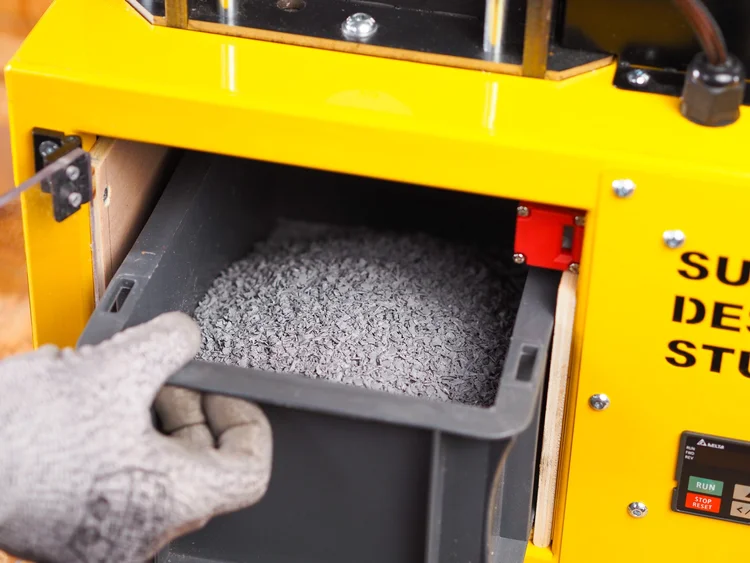

Consistent 8 mm plastic flake produced by the Desktop Shredder V2

Cleaner shred

Consistent 8 mm flake

Redesigned cutting teeth produce uniform mold-grade flake that drops straight into the collection tray below. VFD speed control lets you tune the motor to the plastic.

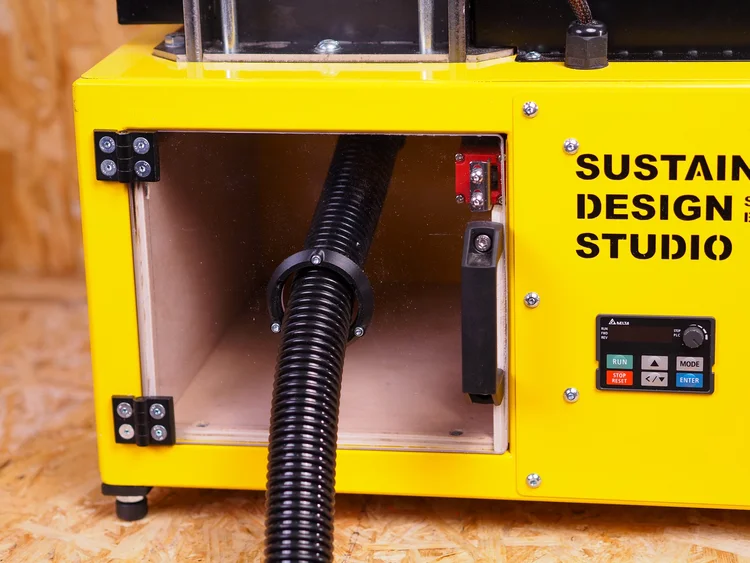

Vacuum extraction port on the back of the Desktop Shredder V2

Optional vacuum

Extraction port included

A vent on the back of the box accepts any standard workshop vacuum, pulling shredded flake clean off the blades and keeping dust out of the room. Optional, but a key upgrade for shared workshops and classrooms.

See it in action

Watch the DSV2 reduce a kilo of plastic in three minutes.

From bottle caps and rigid offcuts to clean 8 mm flake, the whole cycle, uncut. Watch the VFD speed control adjust on the fly, the reversible motor clear a jam, and the extraction port drop the output straight into a collection bin.

20 kg/hr

Output rate

59 dB

Idle noise

Specifications

Technical specifications

Every figure below is published in the DSV2 digital product passport and verified against the build guide.

Specifications may vary slightly between Kit and Partial Built versions. Acrylic and polycarbonate compatibility depends on sheet thickness and feed rate.

Output rate	Up to 20 kg/hr (8 mm mesh)
Granule sizes	5 mm (optional mesh) or 8 mm (standard)
Motor	1.5 kW with 1:40 worm gearbox
Max torque	105 kN at shaft
Max RPM	36 rpm at shaft
Supported plastics	PP, HDPE, LDPE, PLA, PETG, PS, ABS, Acrylic, plus many more (see plastic material database)
Machine dimensions	35 × 64 × 77 cm (D × W × H)
Machine weight	85 kg
Shipping packs	Ships in three to four boxes depending on configuration. Pack A 72 × 38 × 34 cm (40 kg), Pack B 42 × 32 × 30 cm (20 kg), Pack C 37 × 25 × 21 cm (22 kg), Pack D 47 × 33 × 33 cm (16 kg). All dimensions D × W × H.
Voltage	220-240V, 50Hz, single phase. 110V countries: use a 2 kW step-up transformer.
Plug variants	UK (Type G), EU (Type E), or AU, selected at checkout
Hopper opening	20 × 15 × 29 cm (D × W × H), functional 152 mm × 101 mm
Noise	59 dB idle, 71 to 75 dB operating
Safety	Door interlock, hopper interlock, emergency stop, VFD speed controller
Certification	UKCA and CE certified
Warranty	12 months from delivery

V1 vs V2

Five refinements, one redesigned machine

VFD

Variable speed control

A variable-frequency drive lets you tune motor RPM to the plastic. Run it slow on hard mold offcuts, fast on soft bottle caps.

New

Sharper cutting teeth

Redesigned tooth geometry cuts cleaner at the same torque. Better mold-grade flake from the same waste stream.

Vacuum

Optional extraction port

A new port on the back of the box accepts a workshop vacuum, pulling shredded flake straight into your collection bin.

Reversible

Two-direction motor

Hit a jam and reverse the rotary switch for ten seconds to clear it. Returns to forward ready to keep shredding.

3 locks

Door, hopper, e-stop

Three independent interlocks disable shredding unless every guard is closed and the e-stop is released. Built for shared workshops and classrooms.

Two ways to buy

Build it yourself, or finish it on the bench.

Kit

Self assembly

From £2,745 save £355 vs partial built

Order the DSV2 as a kit and gain a deeper understanding of how your machine works. Includes the full digital build guide and parts list.

Step-by-step digital build guide, three stages (~7 to 8 hours total)
Complete parts list with diagrams
Torque tables and recommended tool list
Deeper service knowledge for your team

Shop as kit

Partial built

From £3,100 includes UK VAT

The bulk of the assembly is done in the UK workshop. About two hours of final assembly remain on your bench, no specialist tools needed.

Pre-built electronics and main frame
First shred in under two hours
UK / EU / AU plug included
12 month worldwide warranty, end to end

Shop partial built Talk to the team

UPS Carbon Neutral Worldwide

We ship worldwide, carbon neutral

Prompt global delivery with UPS Carbon Neutral. The DSV2 is heavy (85 kg) so freight is quoted per destination at checkout. UK orders usually arrive next-day. EU orders typically arrive in three to five working days. Elsewhere worldwide, in seven to ten working days.

Lead time

Varies by stock

Plug

UK / EU / AU

Voltage

220V / 50Hz

Digital product passport

See where every part came from

Every DSV2 ships with a digital product passport. Part sourcing, material breakdown, and the full environmental impact of your purchase, in one place.

Coming soon

FAQ

Questions, answered honestly

Still unsure? The team replies within one to two working days. Get in touch

Can I run the DSV2 in a 110V country?

The DSV2 is a 220-240V, 50Hz, single-phase machine only. There is no 110V version. To run it in the USA, Canada, Japan, or anywhere else on 110V mains, use a 2 kW step-up transformer (110V to 220V), which gives the 1.5 kW motor about 0.5 kW of headroom.

How long does the kit take to build?

About 7 to 8 hours, split into shredder box (~2.5 hours), electronics on the main frame (~4 hours), and final assembly (~1.5 hours). Tools: standard metric Allen keys, Phillips and flathead screwdrivers, spanners, circlip pliers, and a nylon-faced hammer. The Partial Built option ships with most of the assembly already done and only takes a couple of hours to finish.

What plastics can I shred?

PP, HDPE, LDPE, PLA, PETG, PS, ABS, and Acrylic, plus many more. See the full plastic material database for compatibility detail. The output is sized to feed directly into the Injection Mini V2 for injection molding, with a standard 8 mm mesh giving ~20 kg/hr throughput. NOT suitable for plastic film, fabrics, or anything thicker than 3 mm.

Do you ship to my country?

Yes. We ship worldwide with carbon-neutral delivery as standard, and have shipped to 94 countries to date. Default invoicing is in GBP; we can also issue invoices in EUR, USD, or CAD on request. The DSV2 is heavy (85 kg) so freight is quoted per destination at checkout.

What is the difference between V1 and V2?

The V2 adds variable-frequency drive speed control, redesigned cutting teeth that produce cleaner flake at the same torque, a vacuum extraction port on the back of the box, two-direction reversible operation for clearing jams, and three independent safety interlocks (door, hopper, and e-stop) for shared workshops. Same 20 kg/hr output, same moulding-ready 8 mm mesh.

Is the DSV2 safe for classroom use?

Yes. Three independent interlocks (door, hopper, and e-stop) disable shredding unless every guard is closed and the rotary switch is in the default position. UKCA and CE certified. Connect any standard workshop vacuum to the rear extraction port for cleaner, dust-controlled operation.
