Refined and upgraded, V2 FEV2

Fume
Extractor V2

Dual-mode extraction, mandatory for safe processing.

The Fume Extractor V2 is a portable extraction unit designed and built in the UK by Sustainable Design Studio, to pair with your Injection Mini V2, Extruder Mini V2, or any of our desktop machines. Plastic processing releases fumes that can be harmful if inhaled, so extraction is mandatory for safe operation.

Shop the FEV2 View spec sheet

UKCA and CE certified
12 month worldwide warranty
Carbon neutral shipping

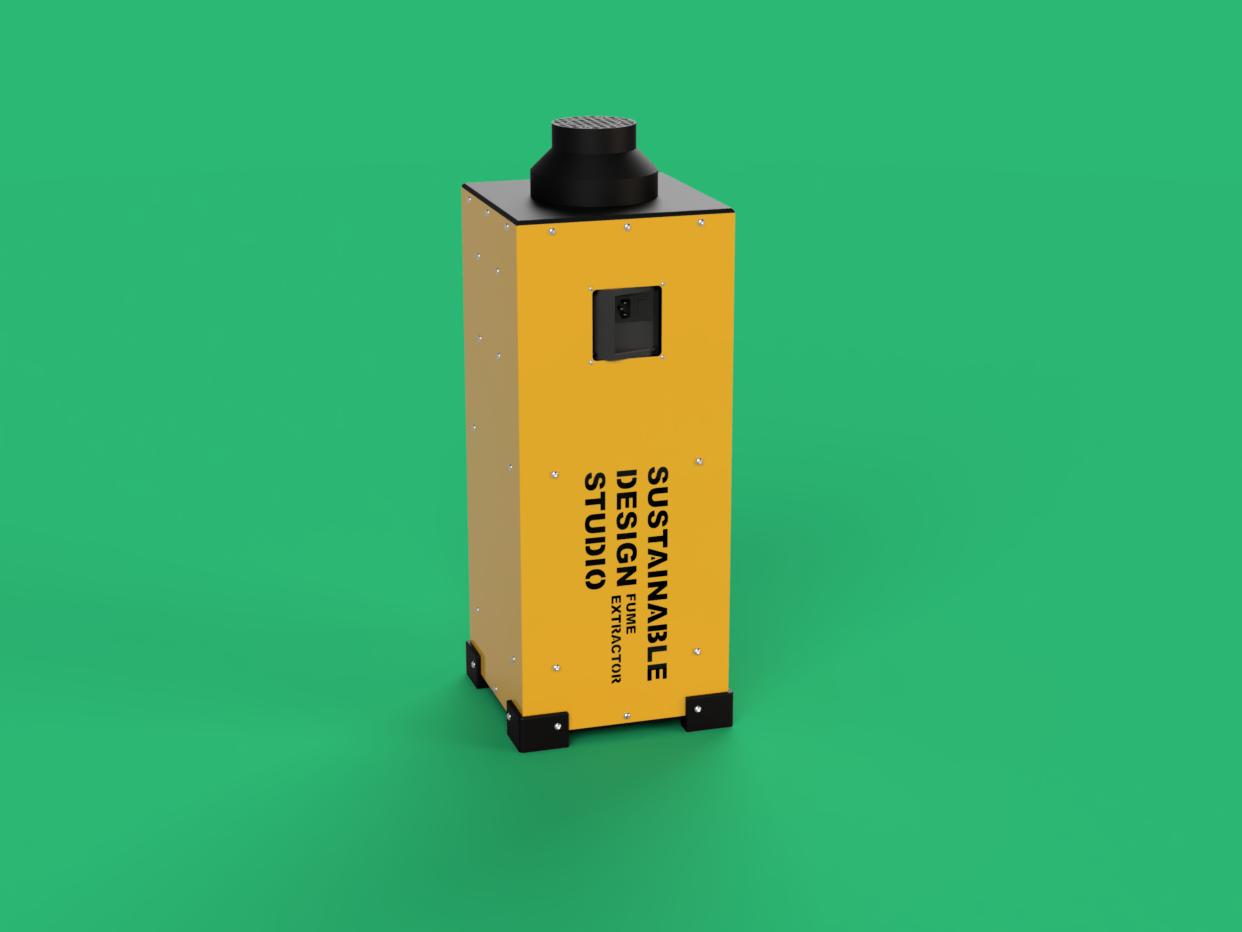

Fume Extractor V2 portable benchtop extractor designed for desktop plastic recycling machines

100-150W

Mains draw

Ø100mm

Extraction port

11kg

Bench weight

Dual mode

Inline or standalone

Open workshop Filtered air

530m³/hr through HEPA and activated carbon.

530m³/hr

A HEPA pre-filter catches particulates from the moment fumes leave the barrel, then activated carbon traps the volatile compounds released during plastic molding. Mandatory protection whenever you melt or extrude thermoplastic, in either inline or standalone mode.

In use

Built to make plastic processing safe

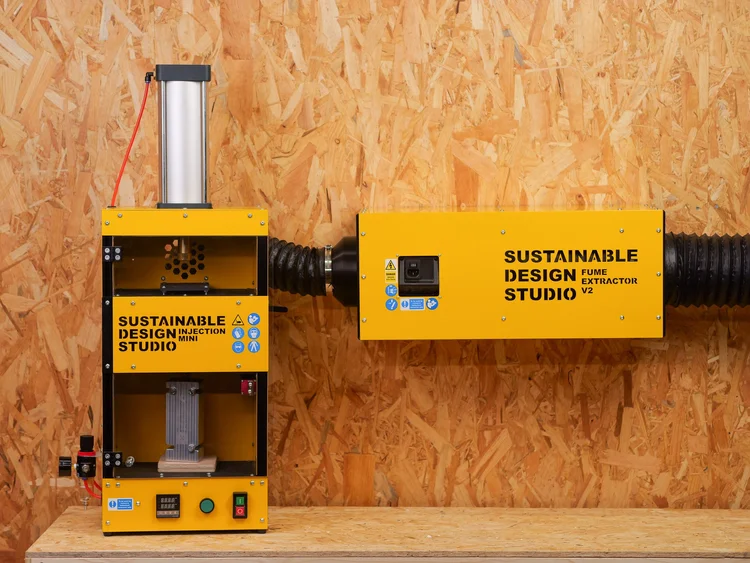

Fume Extractor V2 sat alongside a desktop plastic recycling machine in a workshop

Dual mode

Vent outside or filter on the bench

Connect to outside ducting via the Ø100mm port to vent fumes away, or run standalone as a benchtop carbon filter for spaces where outdoor ducting is impractical.

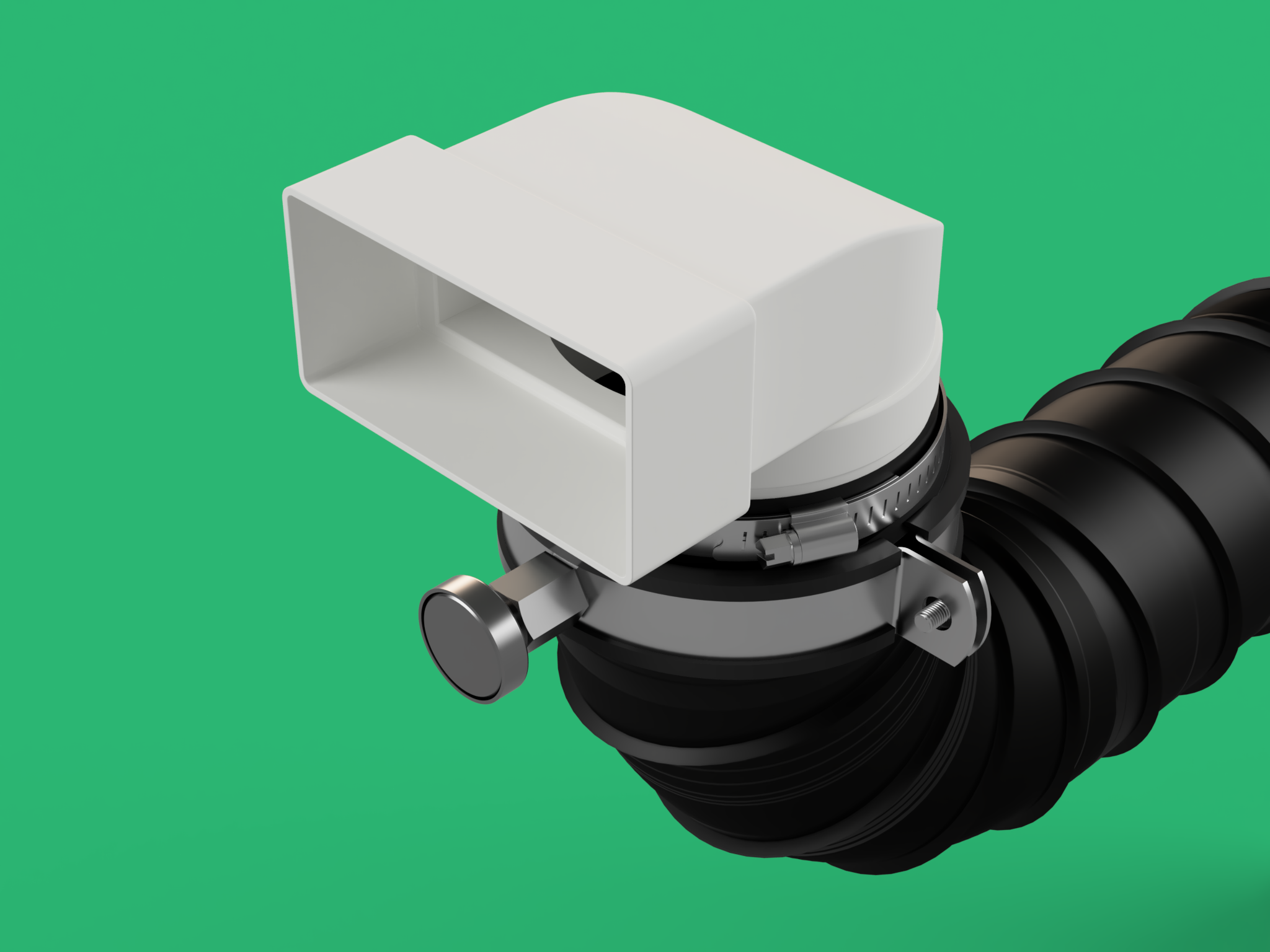

Close-up of the Fume Extractor V2 nozzle with the supplied flange and clamp

100mm port

Universal extraction connection

The Ø100mm (4 inch) port matches the IMMV2's extraction nozzle and any standard workshop extraction system. Clamps on with the supplied flange.

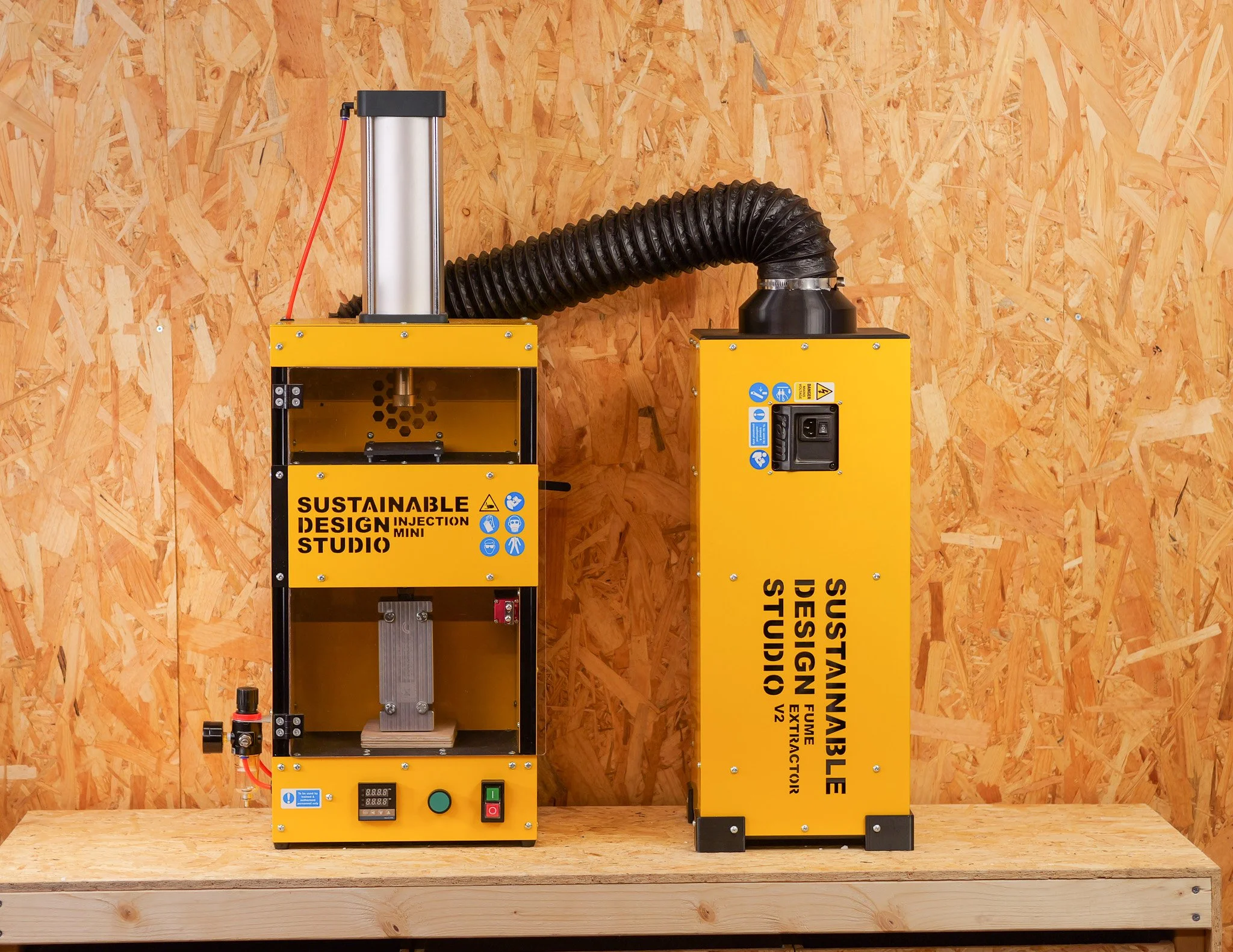

Fume Extractor V2 photographed vertically, showing its compact benchtop footprint

Portable

Carry it between sites

At 11kg and 28 × 28 × 68cm (D × W × H), the FEV2 fits on any benchtop and moves between rooms or sites with ease. Ideal for shared workshops, classrooms, and pop-up recycling events.

Specifications

Technical specifications

Every figure below is published in the Fume Extractor V2 digital product passport and verified against the build guide.

The FEV2 is mandatory for safe operation of any of our plastic processing machines. Filter life depends on plastic type and usage volume; see FAQ for guidance.

Power draw	100 to 150W
Voltage	220-240V, 50Hz only
110V countries	Use a 2kW step-up transformer (can be shared with the Desktop Shredder V2)
Plug variants	UK (Type G), EU (Type E), or AU (Type I), selected at checkout
Extraction port	Ø100mm (4 inch)
Airflow	Up to 530m³/hr
Operating modes	Inline (vent outside via ducting) or standalone (benchtop HEPA + carbon filter)
Compatible machines	Injection Mini V2, Extruder Mini V2, and any of our machines with a Ø100mm port
Filter media	HEPA pre-filter and activated carbon main filter, both replaceable
Machine dimensions	28 × 28 × 68cm (D × W × H)
Machine weight	11kg
Shipping packs	Two boxes per shipment. Pack A 72 × 36-38 × 34cm (14-16kg), Pack B 42 × 30 × 29-30cm (~5kg). All dimensions D × W × H.
Frame	Powder-coated steel
Noise level	Workshop-friendly (decibel figure not yet measured)
Safety	Designed to capture fumes from plastic processing; use is mandatory per our safety guidance
Certification	UKCA and CE certified
Warranty	12 months from delivery

Two ways to buy

Build it yourself, or plug in and run

Kit

Self assembly

From £599 incl. UK VAT

Order the FEV2 as a kit if you'd like to build it yourself. Includes the full digital build guide, parts list, hardware, and both the HEPA pre-filter and activated carbon main filter. A few hours of bench assembly remain on site.

Step-by-step digital build guide
Complete parts list with diagrams
HEPA pre-filter and activated carbon filter included
UK, EU, or AU plug included

Shop the kit

Assembled

From £699 incl. UK VAT

The FEV2 ships pre-assembled with both filters fitted. Plug in, connect to your machine's Ø100mm port, and switch on. Choose between inline ducting and standalone benchtop modes.

Ø100mm extraction port standard
Dual-mode: inline ducting or standalone benchtop
HEPA pre-filter and activated carbon filter fitted
12 month worldwide warranty

Shop the FEV2 Talk to the team

Indicative pricing converted live from GBP, rounded. Final amount charged in GBP at checkout.

UPS Carbon Neutral Worldwide

We ship worldwide, carbon neutral

Prompt global delivery with UPS Carbon Neutral, so every Fume Extractor V2 reaches you ready to plug in and run. UK orders usually arrive next-day. EU and US orders typically arrive in three to five working days. Elsewhere worldwide, in seven to ten working days. The FEV2 ships in two boxes for safe transit.

Lead time

Varies by stock

Plug

UK / EU / AU

Voltage

220-240V / 50Hz

Digital product passport

See where every part came from

Every Fume Extractor V2 will ship with a digital product passport. Part sourcing, material breakdown, and the full environmental impact of your purchase, in one place.

Coming soon

FAQ

Questions, answered honestly

Still unsure? The team replies within one to two working days. Get in touch

Why do I need fume extraction with my SDS machine?

Plastic processing releases fumes that can be harmful if inhaled. We strongly recommend fume extraction whenever you melt or extrude any thermoplastic. The FEV2 is designed to pair seamlessly with the Injection Mini V2, Extruder Mini V2, and any of our machines with a Ø100mm extraction port.

Can I use it without ducting to outside air?

Yes. The FEV2 runs in dual mode: inline (connected to outside ducting via the Ø100mm port) or standalone (as a benchtop carbon filter). The standalone mode is designed for spaces where outdoor ducting is impractical, like shared workshops and classrooms.

Can I run it in a 110V country?

The FEV2 is a 220-240V, 50Hz unit only. There is no 110V version. To run it in the USA, Canada, Japan, or anywhere else on 110V mains, use a small step-up transformer (110V to 220V). The FEV2 only draws 100 to 150W, so even a low-rated transformer works. If you also own a Desktop Shredder V2, both machines can share a single 2kW step-up transformer.

Do you ship to my country?

Yes. We ship worldwide with carbon-neutral delivery as standard, and have shipped to 94 countries to date. Default invoicing is in GBP; we can also issue invoices in EUR, USD, or CAD on request.

Can I share it across multiple machines?

Yes. The Ø100mm port is our standard extraction connection. You can swap it between an Injection Mini V2 and an Extruder Mini V2, or run two machines in sequence using the standalone mode. For full-time use across multiple machines we recommend dedicated FEV2 units per workstation.

How often do I replace the filter?

The activated carbon filter lasts approximately 6 months in standalone mode, depending on plastic type and usage volume. In inline mode (venting outside) the filter is the secondary stage and lasts much longer. Replacement filters are available from Sustainable Design Studio, email contact@sustainabledesign.studio for stock and pricing.
