Injection
Mini V2
Precision moulding, minimal footprint.

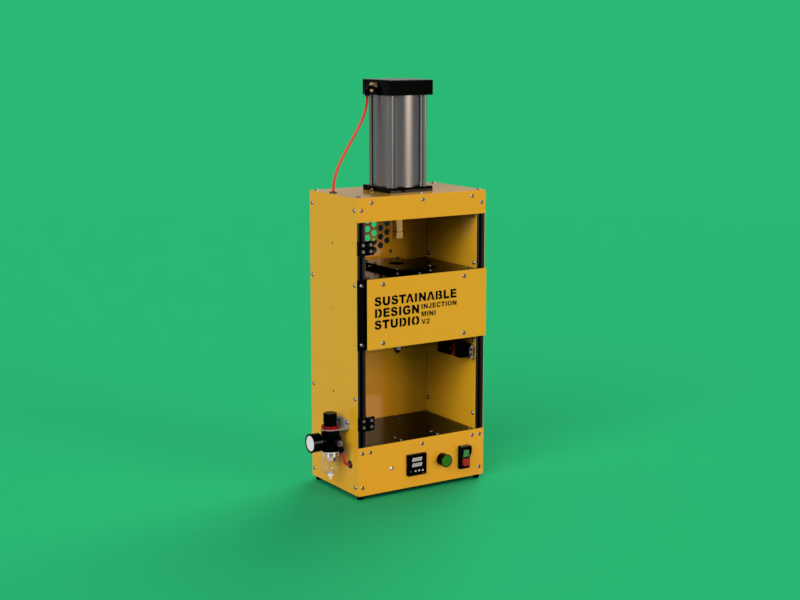

The Injection Mini V2 is a desktop injection moulding machine designed and built in the UK by Sustainable Design Studio, for prototyping, small-batch production, and educational projects. Turn recycled flake into finished product, right from your workshop.
- UKCA and CE certified
- 12 month worldwide warranty
- Carbon neutral shipping
37× faster than 3D printing. Solid, smooth, and recycled-ready.
A desktop 3D printer builds one layer at a time. The Injection Mini V2 fills a full mold in a single ten minute cycle, then ejects parts that are solid through, free of layer lines, and made from your own recycled shred if you want them to be.
Read the full comparisonEngineered for everyday workshop use

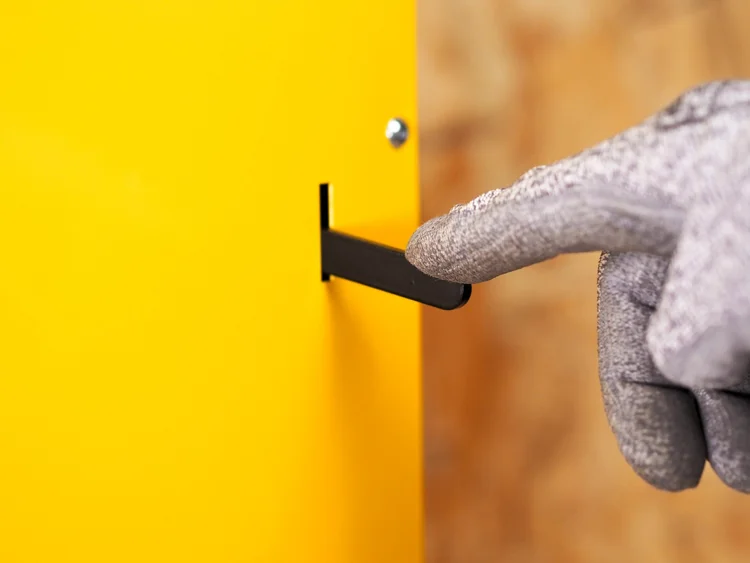

Quick mould release
An accessible side lever raises the barrel nozzle in one motion for smooth, efficient mould changeover between injections.

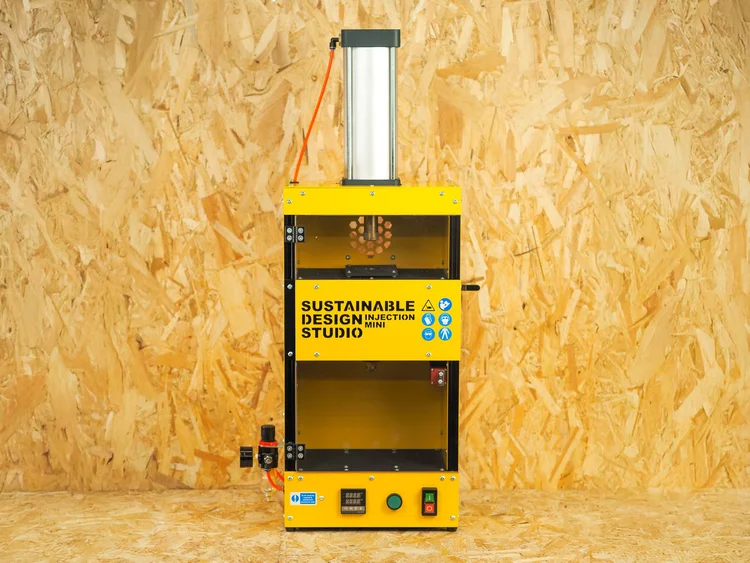

Small desktop footprint
At 25 kg and 29 × 47 × 91 cm (D × W × H), the IMMV2 slots into any workshop, studio, or classroom without rearranging the room.

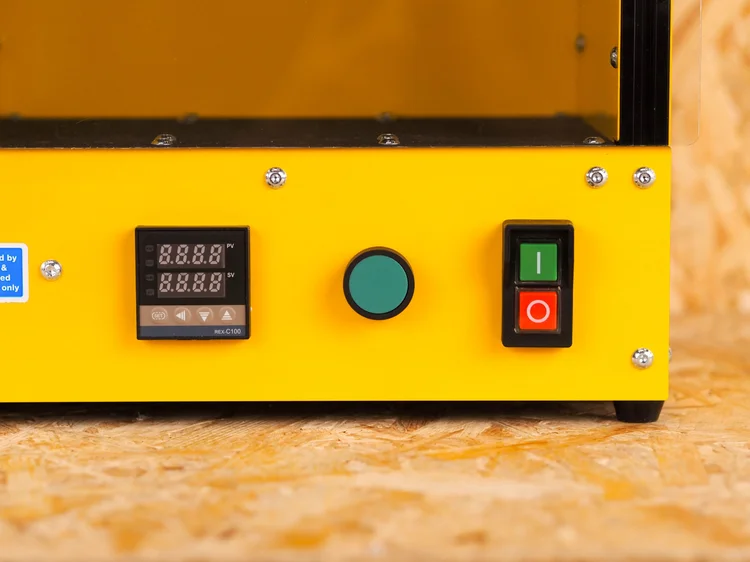

Single-button operation
One press drives the pneumatics through a consistent, repeatable shot. No sequencing, no second-guessing, no manual pressure curves.
Watch the IMMV2 run a full shot
From loading recycled flake to ejecting a finished part, the whole cycle, uncut. Watch the quick-release handle, front-loading door, and single-button operation in real workshop conditions.
Technical specifications
Every figure below is published in the IMMV2 digital product passport and verified against the build guide.
Specifications may vary slightly between Kit and Fully Built versions. PA6 GF15 support depends on melt-flow index and exact material properties.
| Shot size | 78 g, 80 cm³ (true barrel volume 119 cm³) |
|---|---|
| Mould space | 18 × 16 × 26 cm (D × W × H, 13 cm from nozzle centre) |
| Max temperature | 300°C, PID controlled |
| Plastic melt time | 8 to 12 minutes |
| Injection system | Pneumatic, single-button, 8 bar |
| Supported plastics | PLA, PETG, HDPE, ABS, PS, PP, TPU, TPE, LDPE, PA6 GF15, plus many more (see plastic material database) |
| Machine dimensions | 29 × 47 × 91 cm (D × W × H) |
| Machine weight | 25 kg |
| Shipping packs | Two boxes per shipment. Pack A 72 × 52 × 22-32 cm, Pack B 42 × 30 × 19-21 cm (D × W × H, slightly taller for the assembled version) |
| Voltage | 100-120V / 220-240V, plug included for UK, EU, NA, or AU |
| Compressor required | Minimum 8 bar, 24 L tank capacity (not included) |
| Extraction connection | 100 mm (4 inch) ducting flange, compatible with the Fume Extractor V2 |
| Frame | Powder-coated steel |
| Safety | Door interlock, NVR switch, fully enclosed |
| Certification | UKCA and CE certified |
| Warranty | 12 months from delivery, or 2,000 operating hours |
Five refinements, one redesigned machine
More powerful
Upgraded pneumatic system delivers more pressure and more consistent mold injections.
Larger shot size
Up from 70 cm³. Process more material per shot and inject larger product molds.
Quicker changeover
A quick-release handle raises the barrel nozzle in one pull. Mould swaps that took minutes on V1 take seconds on V2.
Enclosed safety
A fully enclosed front-loading door with interlock replaces the open side-loading V1. Safer for classrooms and shared workshops.
Cheaper compressor
An 8 bar compressor is enough, more efficient and affordable than the 10 bar V1 required.
Build it yourself, or start creating today
Self assembly
Order the IMMV2 as a kit and gain a deeper understanding of how your machine functions. Includes the full digital build guide and a digestible parts list.
- Step-by-step digital build guide, 38 sections
- Complete parts list with part numbers
- Approximately 3 to 4 hours from unboxing to first shot
- Deeper service knowledge for your team
Fully assembled
Don't have the time or resources to work on a kit? The pre-assembled IMMV2 has you covered. Start creating straight out of the box.
- Tested and calibrated in the UK workshop
- First shot in under 20 minutes
- UK, EU, NA, or AU plug included
- 12 month worldwide warranty, end to end
We ship worldwide, carbon neutral
Prompt global delivery with UPS Carbon Neutral, in multiple electrical configurations so every IMMV2 works seamlessly wherever you are. UK orders usually arrive next-day. EU and US orders typically arrive in three to five working days. Elsewhere worldwide, in seven to ten working days.
See where every part came from
Every IMMV2 ships with a digital product passport. Part sourcing, material breakdown, and the full environmental impact of your purchase, in one place.
Read IMMV2 passportFAQ
Questions, answered honestly
Still unsure? The team replies within one to two working days. Get in touch
Turn waste into product with the IMMV2
£1,150 fully assembled, £925 as a kit. UPS Carbon Neutral shipping worldwide, 12 month warranty, and a digital product passport with every machine.
