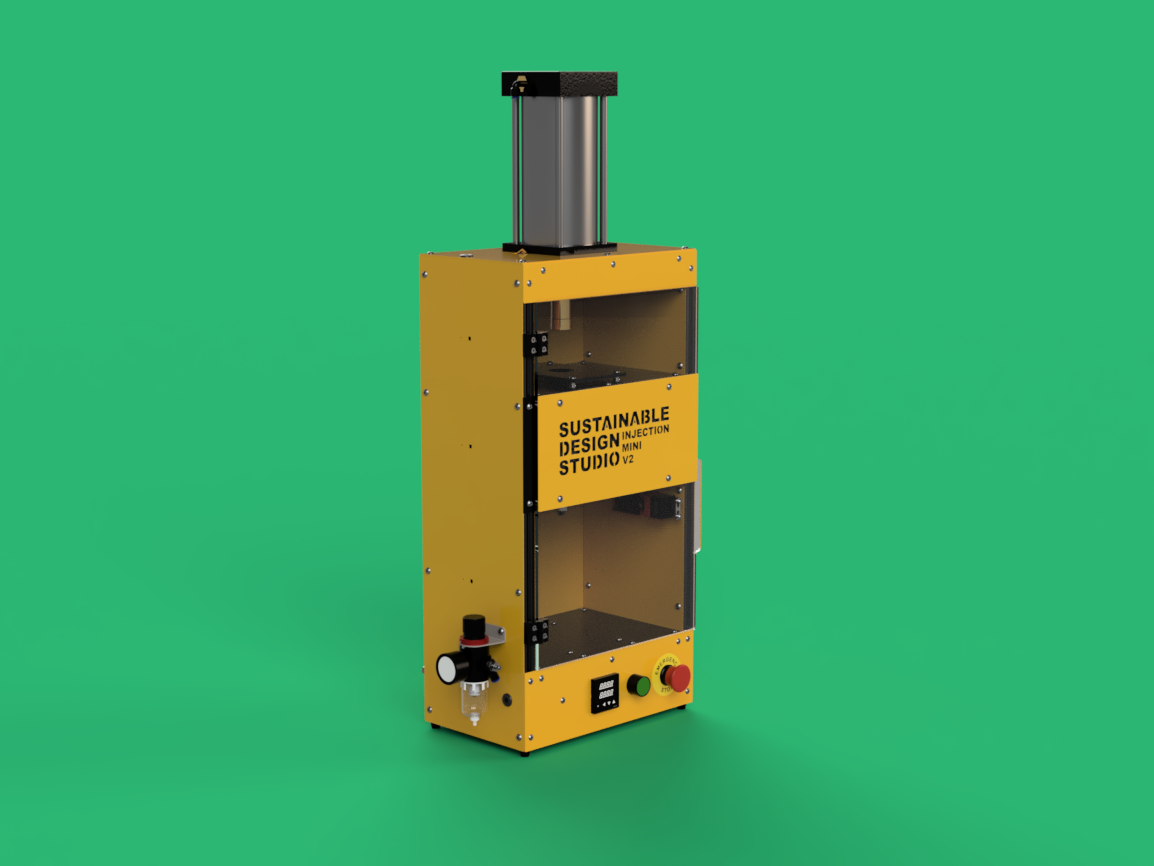

Injection Mini Machine V2

All the features of our V1, but now with 2.5x more injection force and improved user interface!

A versatile and user-friendly desktop injection moulding machine, ideal for prototyping, small-scale production, and educational purposes. The one-button operation and fully enclosed design with a safety sensor make this machine safe and easy to use. The increased barrel size even means you can load bottle tops directly into the machine without shredding them first.

Key Features:

• 12 Months Warranty

• Compact Desktop Design

• Fully Powder Coated Frame

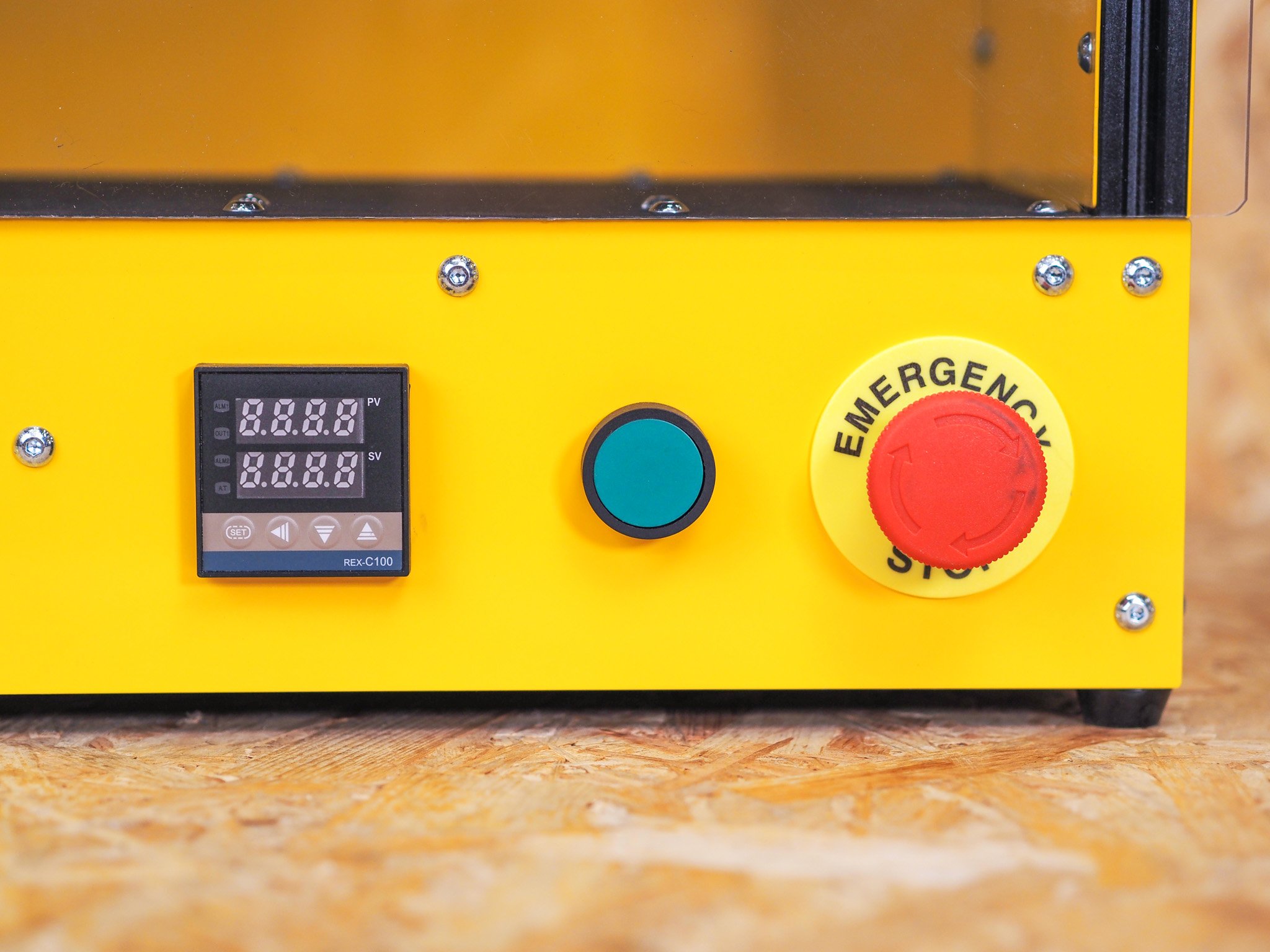

• Pneumatic Injection With A Single Button

• Fully Enclosed Design With Sensors On The Door

• Quick Release Mould Mechanism

• Shipped with Your Country Plug

• Modular and Easily Transported

• Designed to be connected to our Fume Extractor or any 150mm (4”) Extraction System

• Comes with a handy Assembly Guide and a User Manual

• Huge 78g/80cm³ shot size

• Massive Mould Space 18 x 16 × 26cm (13cm from nozzle centre)

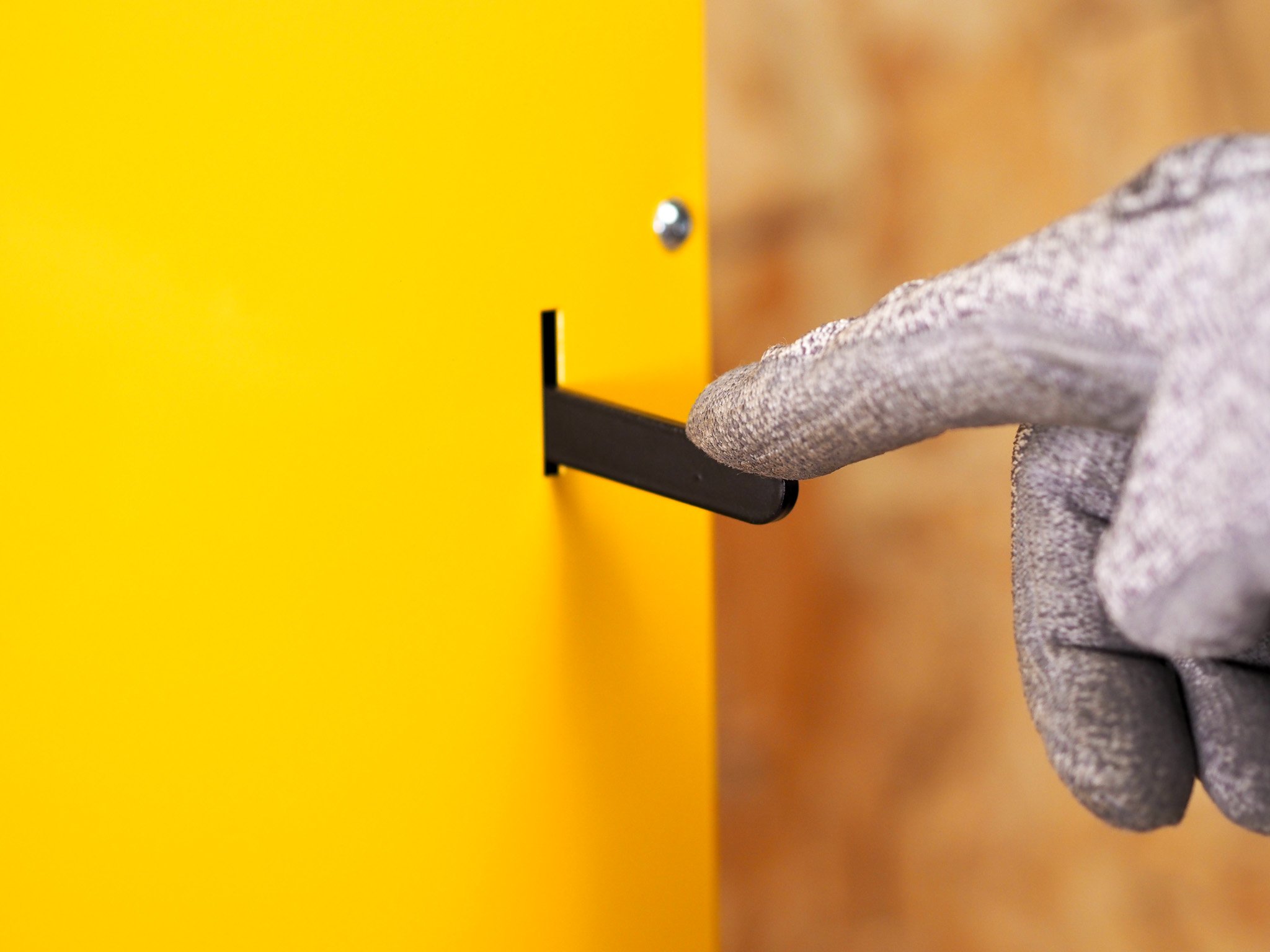

• Mould quick release lever.

• Available in 220v or 110v configurations

• Plastic Melting Time: 8-12 minutes

• Max Temperature of 280°c

• Supported materials - Wide range of thermoplastics, including PLA, PETG, HDPE, ABS, PS, PP, and LDPE.

• Machine dimensions: 15×90×35cm (D×H×W)

• Shipping box dimensions: 23kg (volumetric weight); 15×90×35 cm;
