Premium Mould #2 - Square Coaster Mould

A common rule of thumb in the plastics industry is: "The higher the quality of the mould, the higher the quality of the final product."

That's why we created our Premium Moulds range. These moulds are machined from solid Aluminium to ensure the highest quality surface finish and are designed specifically for the capabilities of our machines. They are the best choice for creating high-detail, useful products from recycled plastic.

Turn recycled plastic into clean, professional square coasters at desktop scale. Available in Single (1 cavity) and Double (2 cavity) options, compatible with PP, HDPE, LDPE, and PS. Each coaster measures 100 x 100mm with a near-full-face logo space of 97 x 97mm, making this one of the best moulds in the range for branded merchandise.

Variants

• Single: 1 coaster per shot, 40.7 cm3 shot volume, mould size 140 x 160 x 50 mm

• Double: 2 coasters per shot, 81.2 cm3 shot volume, mould size 140 x 260 x 50 mm

Please note: Each variant is sold as a separate mould. The Double mould produces two coasters per shot and requires roughly twice the material per cycle.

Production at a Glance

Single: 1 coaster per shot, less than 2 minutes per cycle, ~30 coasters per hour

Double: 2 coasters per shot, less than 2 minutes per cycle, ~60 coasters per hour

Designed for small batch production, workshops, and sampling runs. The large logo space makes square coasters ideal for branded merchandise and promotional items.

Perfect For

• Brands and businesses producing branded recycled coasters for retail, hospitality, or corporate gifting

• Makerspaces and community workshops running plastic recycling demonstrations with a useful, take home product

• Schools and universities teaching material science and circular design with a practical, hands on output

• Small manufacturers creating custom coaster sets in mixed recycled colour blends for independent retailers

• Event organisers producing branded, sustainable promotional items at volume with the Double mould

Precision Engineering

Part of the Premium Moulds range. CNC machined from solid 7075 aerospace-grade aluminium alloy for superior strength, rapid heat dissipation, and consistent part quality. The surface finish is optimised for easy ejection without sticking, delivering a clean part every time. Designed specifically for SDS machines and rated for 10,000+ injection cycles with proper maintenance.

Single Square Coaster Mould

Specifications

• Mould Material: 7075 Aerospace Aluminium Alloy

• Plastic Compatibility: PP, HDPE, LDPE, PS

• Recommended Temp: 210°C (PP)

• Item Size: 100 x 100 x 5 mm

• Part Volume: 39.5 cm3

• Shot Volume: 40.7 cm3

• Cycle Time: Less than 2 minutes per shot

• Mould Size: 140 x 160 x 50 mm

• Estimated Life: 10,000+ cycles

• Nozzle Type: SDS Tapered Hybrid (alternatives available on request)

• Machine Compatibility: Injection Mini Machine, Arbour Injection Machine

• Custom Logo Space: Yes (97mm x 97mm)

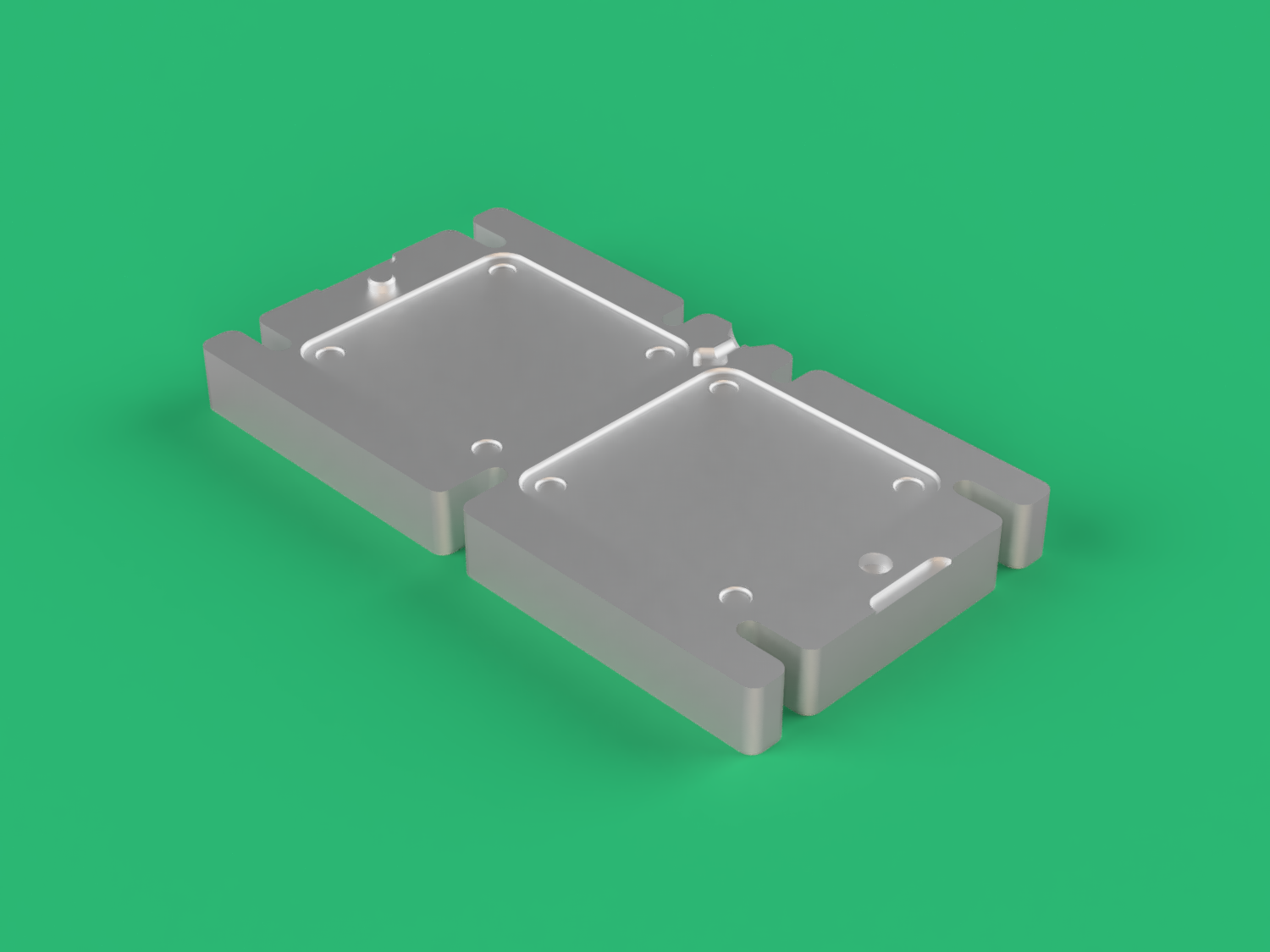

Double Square Coaster Mould

Specifications

• Mould Material: 7075 Aerospace Aluminium Alloy

• Plastic Compatibility: PP, HDPE, LDPE, PS

• Recommended Temp: 210°C (PP)

• Item Size: 100 x 100 x 5 mm

• Part Volume: 39.5 cm3

• Shot Volume: 81.2 cm3

• Cycle Time: Less than 2 minutes per shot

• Mould Size: 140 x 260 x 50 mm

• Estimated Life: 10,000+ cycles

• Nozzle Type: SDS Tapered Hybrid (alternatives available on request)

• Machine Compatibility: Injection Mini Machine, Arbour Injection Machine

• Custom Logo Space: Yes (97mm x 97mm)

What's in the Box

• 1x Premium Square Coaster Mould (7075 Aluminium)

• 1x Set of Mounting Bolts

• 1x Digital User Guide (QR Code)

Shipping & Support

We ship from the UK to destinations worldwide. For dispatch times and shipping rates, see our FAQ Page. For any other enquiries, visit our Contact Page.

Customisation

This design can be fully customised, including adding logos, changing the shape, or creating an entirely new product. Visit our Custom Product Design Page for details.
